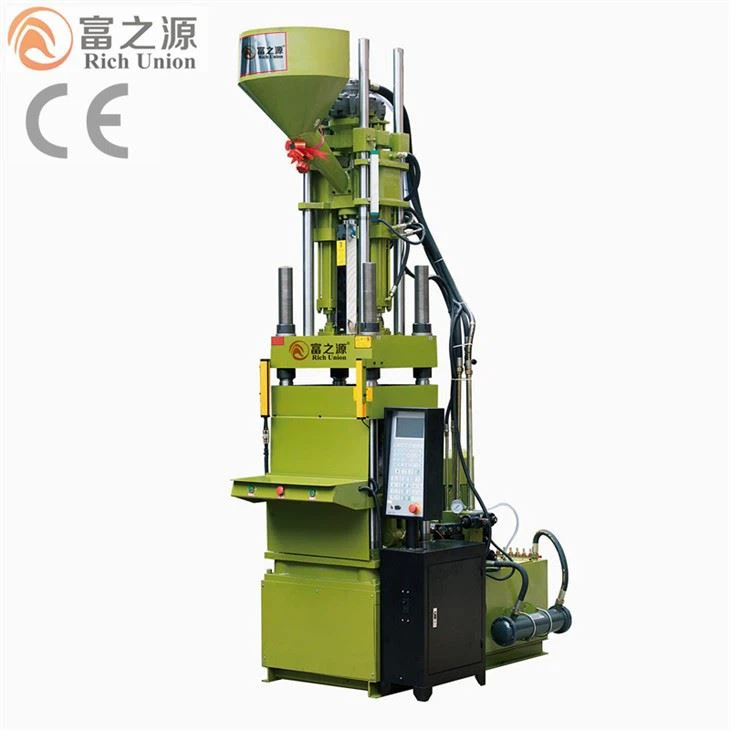

Vertical Injection Machine For Shoe Soles

Name: Vertical Injection Machine For Shoe Soles
Brand: Rich Union
SKU: 123282694

Plastic Tag Printing String Seal Machine Vertical Injection Machine For Shoe Soles One stop purchase ,a whole set Solution On site technicial support available Siemens PLC with internet, technicial support online Easy Changed Mold and LOGO Semi auto plastique accessories hang tag water tap making plastic bucket injection moulding machine for pen Guangzhou rich Union source import &Export Trade Co., Ltd. Dedicated to injection molding machines and serial auxiliaries, Suspended particle full automatic manipulator, Full automatic tag threading machine, Full automatic hanging corn machine, Packaging machines and other conventional and intelligent machinery design and manufacture, Has formed a mature design, production and sales system, Products are sold all over the world.

Send Inquiry

Description

Vertical Semi Auto (500g) / Injection machine	Product
	Screw Diameter	mm	60
	Theoretical Injection Volume	cm³	140
	(PS)Injection Weight	g	550
	Max.Injection Pressure	Kgf/cm²	580
	Injection Rate	cm^3/	155
	Screw speed Rotation	r/min	0-260
	Clamping Force	kn(tf)	1300
	Clamping Stroke	mm	320
	(h*v)Distance Between Tie Bars	mm	517*339
	(l*w)Max. Mould Size	mm	710*520
	Min.Mold Thickness	mm	100-350
	System Pressure	MPA.Kgf/cm²	20
	Eletrice Power ）	KW(HP)	13
	heating power	KW(HP)	7
	Machine Diamensions (lw)	m	1.68*1.2
	Machine high	m	3
	Machine Weight	T	2

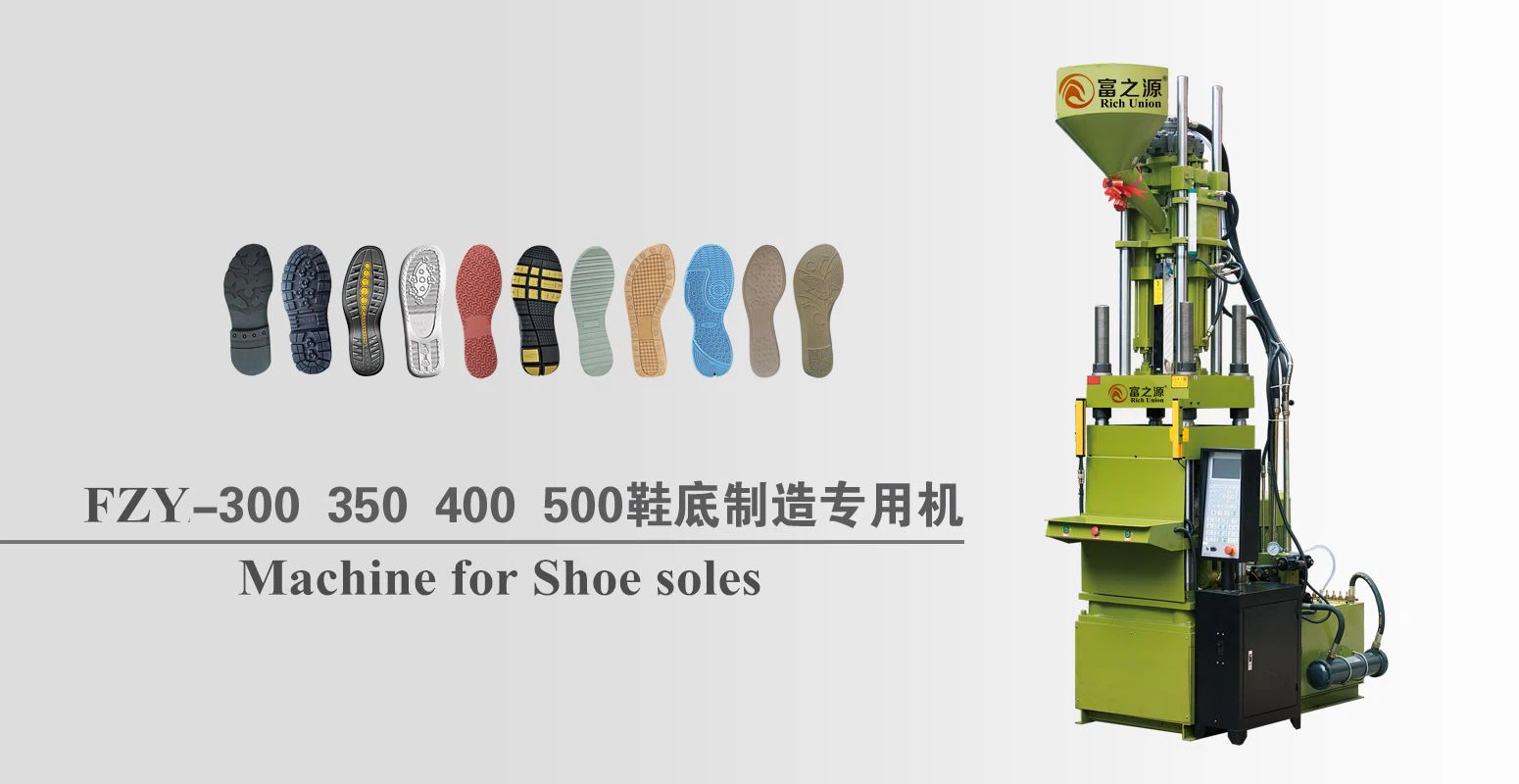

Plastic Hang Tag Seal String with Loop Nylon Cord lock machine (8)

Quantity(Sets)	1 - 2	>2
Est. Time(days)	10	To be negotiated

Model(FZY-)	80	100	125A	160	200	300	400	500
Screw Diameter(mm)	35	38	40	42	45	50	55	60
Theoretical Injection Volume(cm3)	130				140
(PS)Injection Weight(g)	100	120	135	170	269	360	420	550
Max.Injection Pressure(kgf/cm2)	130	140		180	280	280	280	580
Injection Rate(cm3)	70	80	90	95	155
Screw speed Rotation(r/min)	0-180		0-200	0-200	0-220	0-240	0-240	0-260
Clamping Force(kn(tf))	700	800		800	1000	1200	1200	1300
Clamping Stroke	250			320
(h*v)Distance Between Tie Bars(mm)	360*244			390*285	405*296	450*325		517*339
(l*w)Max. Mould Size(mm)	525*405			530*430	565*450	625*505		710*520
Min.Mold Thickness(mm)	100-320	100-330		100-330	100-350
System Pressure(mpa.kgf/cm2)	16				18			20
Eletrice Power(kw(hp))	5.5	5.5	7.5		11			13
Heating power(kw(hp))	4.8				5	6	6	7
Machine Diamensions (lw)(m)	1.6*0.9	1.3*0.9	1.6*0.9	1.65*0.9	1.4*1	1.68*1.2
Machine high(m)	2.6			2.6	28	3	3	3
TMachine Weight(T)	1	1.1		1.2	1.5	1.6	1.6	2
