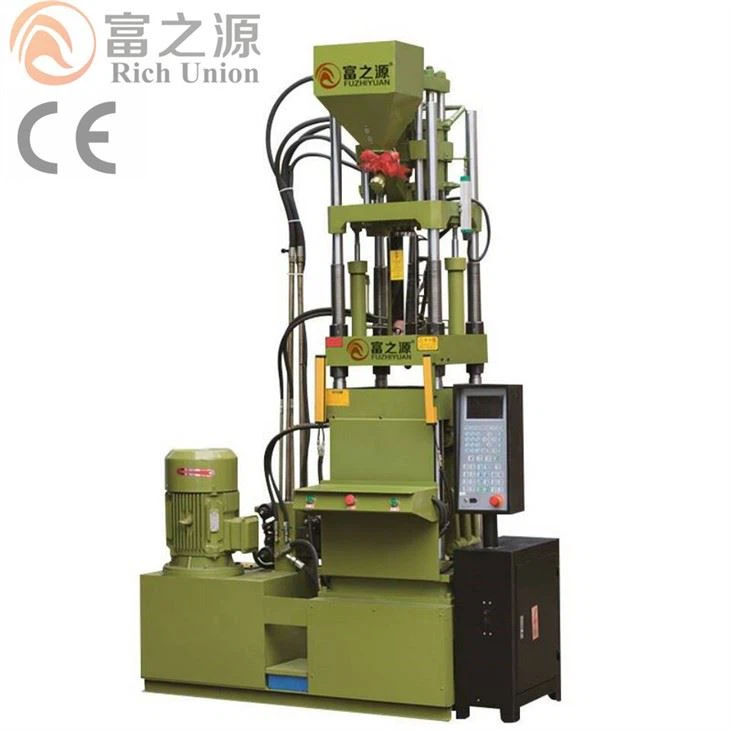

Plastic Injection Molding Machine
Plastic string lock seal hang tag for injection molding machine
and Full automatic production
Detailed Product Description
Application: | Automatic Injection Moulding Machine | Production Speed: | 4000-4500 Pcs/hr |
Foil Printing: | Yes | Technical Training: | Available |
Automation: | Full Automation | Warranty: | 1 Year |
Patented machine!
The plastic injection moulding machine has follow features:
1. Double-cylinder balance injection system
2. Multi-stage pressure & speed injection
3. Back-pressure adjustment device
4. Decompression
5. Low pressure mold protection
6. Multiple hydraulic ejector knock-out
7. Lubrication system
8. Hydraulic pressure full proportional control
9. All computer control system
10. Molding data memory system
Applications:
PP Seal tag for clothes
PS Seal tags for hand bag
Seal tags for student bag
Label tags
Foiled Printing string tags
General cotton Seal Tags
Waxed Cotton Seal Tag string
Polyester Cord Seal Tag
Features:
Full Automatical,no need labor
High efficiency,cycle time 6-10s, 10-16 cavities
High speed injection machine, saving power by 60%
One stop purchase ,a whole set Solution
On site technicial support available
Siemens PLC with internet, technicial support online
Easy Changed Mold and LOGO
Advantages
We can provide one-stop purchase service,including the whole production line, auxiliary equipment, water Chiller, Air Compressor, yarns
We can provide technicial support lifetime ,sharing 20 years experience in making tags.
helping you to improve the production output and save cost and solve all problems in process.
Plastic injection moulding machine parameters:
Product | Vertical Semi Auto (80g) / Injection machine | |
screw diameter | mm | 38 |
injection pressure | Mpa | 130 |
theoretical injection volume | cm3 | 140 |
Injection weight | g | 110 |
inection pate | g/s | 80 |
Voltage | V | 380 |
clamping type | 内翻双曲肘 | |
clamping force | kn | 800 |
Max. open daylight | mm | 250 |
mold thickness | mm | 100-300 |
distance between tie bare | mm | 360*244 |
mold plate size | mm | 525*405 |
ejector type | 液压顶出 | |
pump motor power | KW | 7.5 |
heating power | kw | 4.8 |
machine weight | kg | 1550 |
machine size | m | 1.6*0.83*2.6 |
