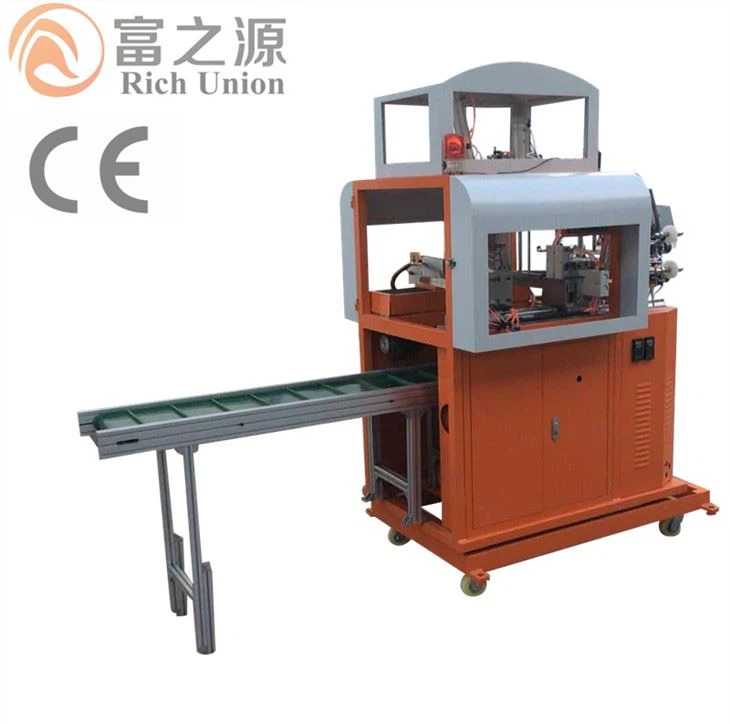

Tag Injection Molding Machine

Name: Tag Injection Molding Machine
Brand: Rich Union
SKU: 123282689

Plastic Tag Printing String Seal Machine One stop purchase ,a whole set Solution On site technicial support available Siemens PLC with internet, technicial support online Easy Changed Mold and LOGO Semi auto plastique accessories hang tag water tap making plastic bucket injection moulding machine for pen Guangzhou rich Union source import &Export Trade Co., Ltd. Dedicated to injection molding machines and serial auxiliaries, Suspended particle full automatic manipulator, Full automatic tag threading machine, Full automatic hanging corn machine, Packaging machines and other conventional and intelligent machinery design and manufacture, Has formed a mature design, production and sales system, Products are sold all over the world.

Send Inquiry

Description

String Seal Lock Making Machine

Fully automatic robot (with the printed machine)	CPU		ARM Cortex M CPU
	驱动模式Drive		Server
	适用合模高度Fastest time to take out time (S)	mm	2.5
	最快模内取出时间Fastest cycle time(S)	S	9
	可生产吊粒长度Can product total length of the string (mm)	mm	140-380
	输送带类型		平面输送带
	每小时最大产量MAX Quantity(times/ hour)	mold	400
	适用机型		立式机.卧式机
	工作气压Working Pressure (Mpa)	Mpa	0.4-0.6
	工作电压（交流）Voltage	V	220
	主要尺寸Main Specification(cm)	cm	20078113
	机械重量Main body weight(kg)	kg	380

Vertical Semi Auto (63g) / Injection machine	Product
	Screw Diameter	mm	32
	Theoretical Injection Volume	cm³	120
	(PS)Injection Weight	g	60
	Max.Injection Pressure	Kgf/cm²	90
	Injection Rate	cm^3/	68
	Screw speed Rotation	r/min	0-160
	Clamping Force	kn(tf)	550
	Clamping Stroke	mm	200
	(h*v)Distance Between Tie Bars	mm	305*206
	(l*w)Max. Mould Size	mm	450*340
	Min.Mold Thickness	mm	100-300
	System Pressure	MPA.Kgf/cm²	14
	Eletrice Power ）	KW(HP)	5.5
	heating power	KW(HP)	3.2
	Machine Diamensions (lw)	m	1.4*0.8
	Machine high	m	2.5
	Machine Weight	T	0.9

Quantity(Sets) 1 - 2 >2
Est. Time(days) 10 To be negotiated

Model(FZY-)	80	100	125A	160	200	300	400	500
Screw Diameter(mm)	35	38	40	42	45	50	55	60
Theoretical Injection Volume(cm3)	130				140
(PS)Injection Weight(g)	100	120	135	170	269	360	420	550
Max.Injection Pressure(kgf/cm2)	130	140		180	280	280	280	580
Injection Rate(cm3)	70	80	90	95	155
Screw speed Rotation(r/min)	0-180		0-200	0-200	0-220	0-240	0-240	0-260
Clamping Force(kn(tf))	700	800		800	1000	1200	1200	1300
Clamping Stroke	250			320
(h*v)Distance Between Tie Bars(mm)	360*244			390*285	405*296	450*325		517*339
(l*w)Max. Mould Size(mm)	525*405			530*430	565*450	625*505		710*520
Min.Mold Thickness(mm)	100-320	100-330		100-330	100-350
System Pressure(mpa.kgf/cm2)	16				18			20
Eletrice Power(kw(hp))	5.5	5.5	7.5		11			13
Heating power(kw(hp))	4.8				5	6	6	7
Machine Diamensions (lw)(m)	1.6*0.9	1.3*0.9	1.6*0.9	1.65*0.9	1.4*1	1.68*1.2
Machine high(m)	2.6			2.6	28	3	3	3
TMachine Weight(T)	1	1.1		1.2	1.5	1.6	1.6	2
