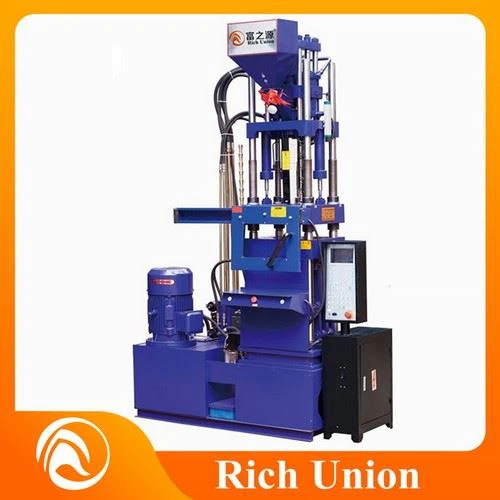

China Clothing Label Making Machine is a mechanical equipment, usually composed of injection system, clamping system, hydraulic transmission system, electrical control system, lubrication system, heating and cooling system, safety monitoring system, etc.
Injection system is one of the most important components of injection molding machine. Generally, there are three main forms: plunger type, screw type and screw pre plastic plunger injection type. The most widely used is screw type. Its function is to heat and plasticize a certain amount of plastic within a specified time in a cycle of the injection molding machine, and then inject the molten plastic into the mold cavity through the screw under a certain pressure and speed.
Product features:
1) Standard material, smooth operation.
2) Dedicated technology, assured quality, strong locking force and not easy to deflect.
3) Focus on production and processing, with a scientific quality management system.
4) Years of experience in mechanical equipment production, a dedicated team integrating mechanical R&D / manufacturing / after-sales service.
5) The lower mold is fixed, the upper mold is movable, the insert is well positioned in the mold, and the hydraulic setting device is easy to take out.
6) Injection back pressure and screw speed are inorganic adjustable, precise and stable
7) Fast mold locking, attached with mortgage mold, to protect mold personal safety
8) It can be equipped with single or double sliding plates, which is handy to operate and has higher safety
9) The material pipe can be raised and lowered, the cleaning head is convenient, and it is easier to fix the mold
10) Full computer specific pressure and flow, position ruler control, convenient and accurate operation, and the injection adopts double cylinder balanced injection system, which is stable and powerful
11) It is more suitable for the molding of various special engineering plastics
12) The clamping system adopts a large pressurized cylinder in the middle, and the traction cylinder is independent and external, so the mold locking is stable and fast
13) Single and double sliding plates can be added for more convenient operation and higher safety
Operating procedures:
1) Mold installation: push the mold moving mechanism to the highest position, install the plastic mold on the mobile template, unscrew the fixed template, correct the upper mold and fixed template of the plastic mold, tighten the screw, fasten the lower mold of the plastic mold on the mobile template, run the mold moving mechanism and check whether the mold position is correct.
2) Barrel heating: turn on the electric heating switch of the electrical control box, add plastic into the barrel and heat it fully to melt the plastic.
3) Switch on the solenoid valve 8 of the injection mold and close the injection mold barrel. After injection molding, turn on solenoid valve 6 to press the injection plunger out of the barrel, turn on solenoid valve 8 to lower the mold moving mechanism, and then open the plastic mold for demoulding.
