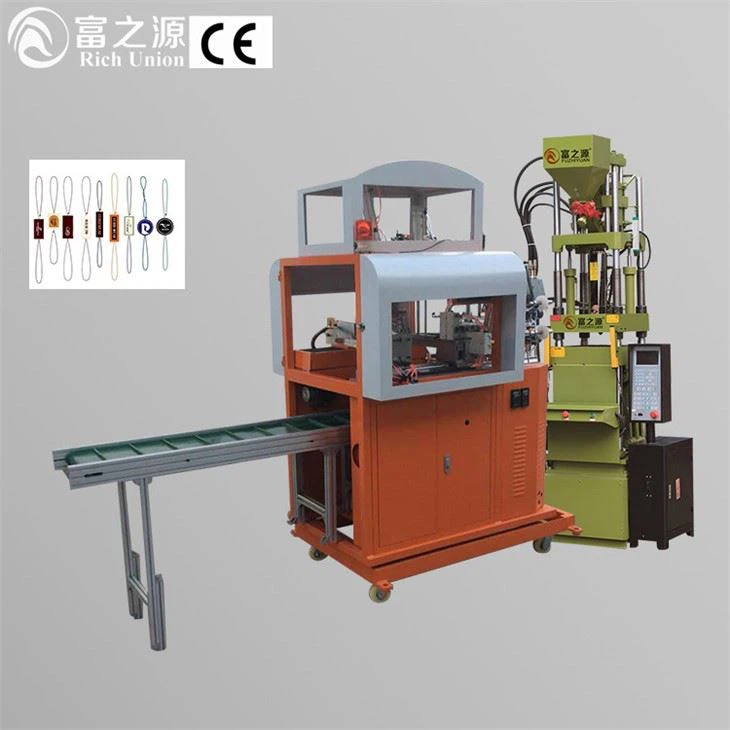

Vertical Plastic Mold Making Machine
Condition:
New
Style:
Vertical
Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
Plasticizing Capacity(g/s):
68
Mold Height(mm):
100 - 300 mm
Ejector Stroke(mm):
250 mm
Ejector Force(kN):
800 kN
Theoretical Shot Volume(cm³):
160 cm³
Injection Rate (g/s):
68 g/s
Machine Type:
Hydraulic
Injection Weight (g):
60 g
Screw diameter (mm):
32 mm
Weight (KG):
0.9
Place of Origin:
Guangdong, China
Open Stroke(mm):
200 mm
Model Number:
FZY-80
Brand Name:
RICH UNION
Certification:
CE and LVD
Power (kW):
5.5 kW
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Online support
Key Selling Points:
High-accuracy
Applicable Industries:
Garment Shops, Manufacturing Plant, Printing Shops
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
Turkey, Brazil, India
Showroom Location:
Turkey, Brazil, India
(h*v)Distance Between Tie Bars:
390*285mm
(l*w)Max. Mould Size:
450*340mm
Min.Mold Thickness:
100-300mm
Machine Diamensions (l*w*):
1.4*0.8m
Machine high:
2.5m
Machine Weight:
0.9T
Injection Rate:
68G/S
Injection Weight:
60G
Power(W):
5.5KW
Plastic Type:
Thermoplastic
Automatic:
Yes
Clamping Force (kN):
550 kN
Distance between Tie Bars:
305*206mm
Packaging & Delivery
Selling Units:
Single item
Single package size:
130X90X80 cm
Single gross weight:
0.900 kg

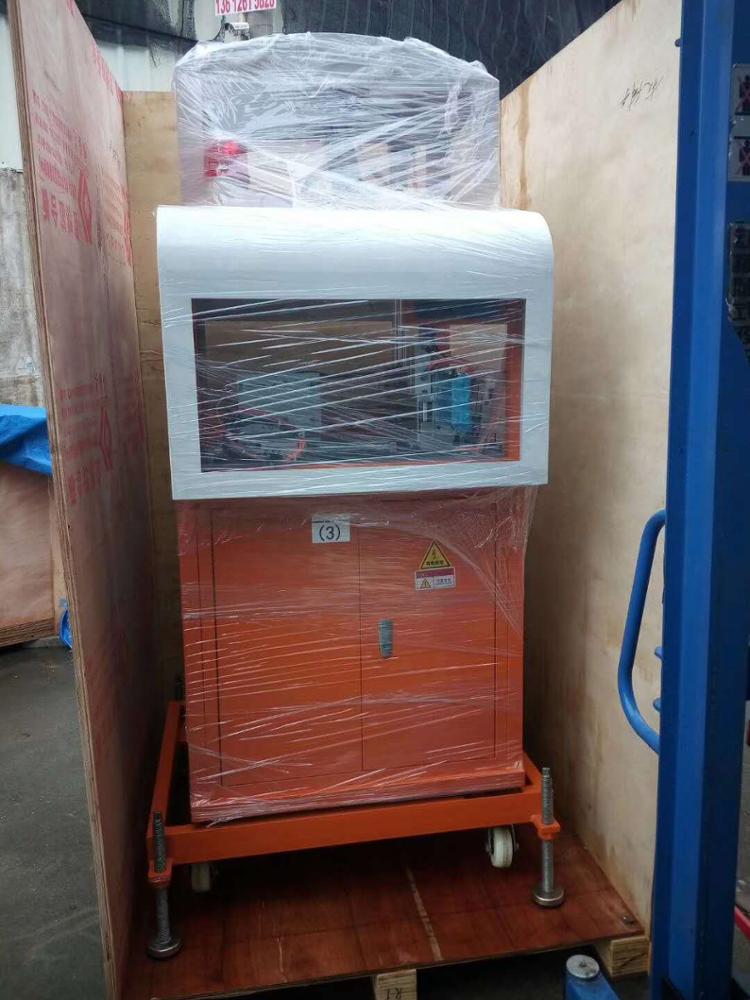

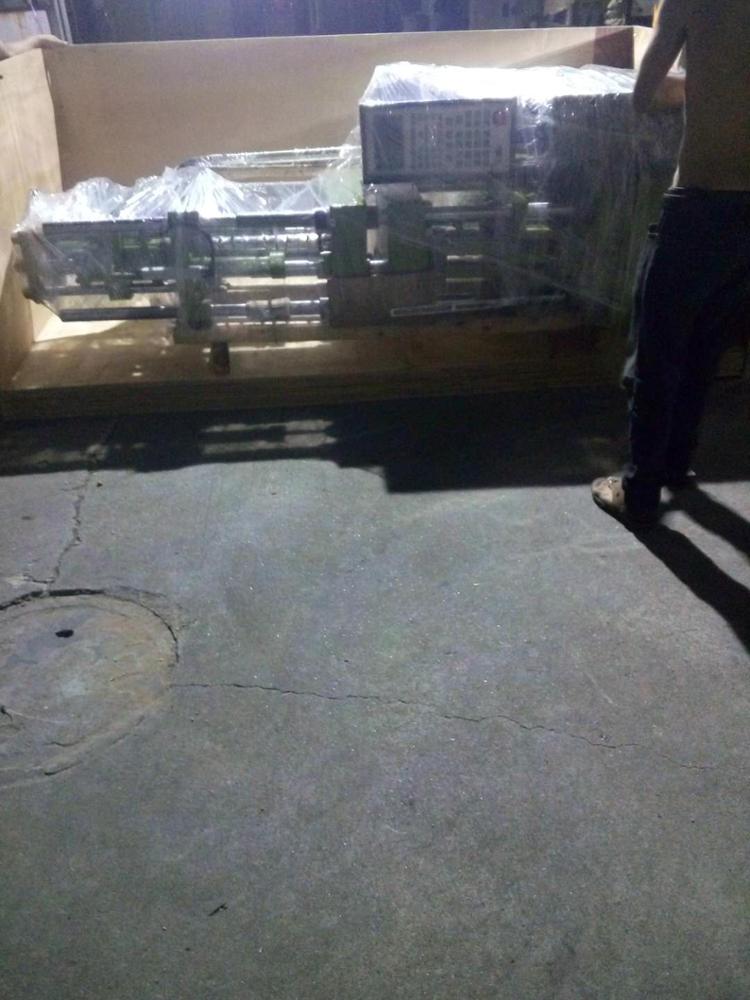

Package Type:
PLASTIC INJECTION MOULDING MACHINE 189*154*214CM
Picture Example:
Lead Time :
Quantity(Sets) 1 - 2 >2 Est. Time(days) 10 To be negotiated

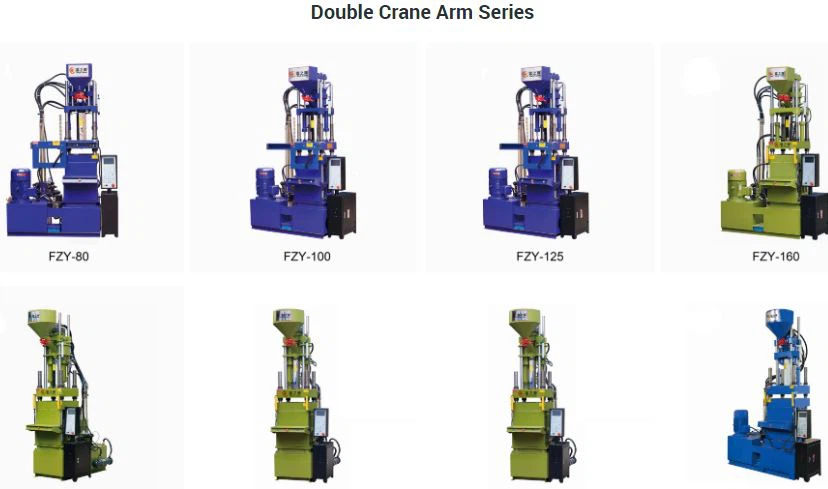

Model(FZY-) | 80 | 100 | 125A | 160 | 200 | 300 | 400 | 500 |
Screw Diameter(mm) | 35 | 38 | 40 | 42 | 45 | 50 | 55 | 60 |
Theoretical Injection Volume(cm3) | 130 | 140 | ||||||
(PS)Injection Weight(g) | 100 | 120 | 135 | 170 | 269 | 360 | 420 | 550 |
Max.Injection Pressure(kgf/cm2) | 130 | 140 | 180 | 280 | 280 | 280 | 580 | |
Injection Rate(cm3) | 70 | 80 | 90 | 95 | 155 | |||
Screw speed Rotation(r/min) | 0-180 | 0-200 | 0-200 | 0-220 | 0-240 | 0-240 | 0-260 | |
Clamping Force(kn(tf)) | 700 | 800 | 800 | 1000 | 1200 | 1200 | 1300 | |
Clamping Stroke | 250 | 320 | ||||||
(h*v)Distance Between Tie Bars(mm) | 360*244 | 390*285 | 405*296 | 450*325 | 517*339 | |||
(l*w)Max. Mould Size(mm) | 525*405 | 530*430 | 565*450 | 625*505 | 710*520 | |||
Min.Mold Thickness(mm) | 100-320 | 100-330 | 100-330 | 100-350 | ||||
System Pressure(mpa.kgf/cm2) | 16 | 18 | 20 | |||||
Eletrice Power(kw(hp)) | 5.5 | 5.5 | 7.5 | 11 | 13 | |||
Heating power(kw(hp)) | 4.8 | 5 | 6 | 6 | 7 | |||
Machine Diamensions (l*w*)(m) | 1.6*0.9 | 1.3*0.9 | 1.6*0.9 | 1.65*0.9 | 1.4*1 | 1.68*1.2 | ||
Machine high(m) | 2.6 | 2.6 | 28 | 3 | 3 | 3 | ||
TMachine Weight(T) | 1 | 1.1 | 1.2 | 1.5 | 1.6 | 1.6 | 2 | |
