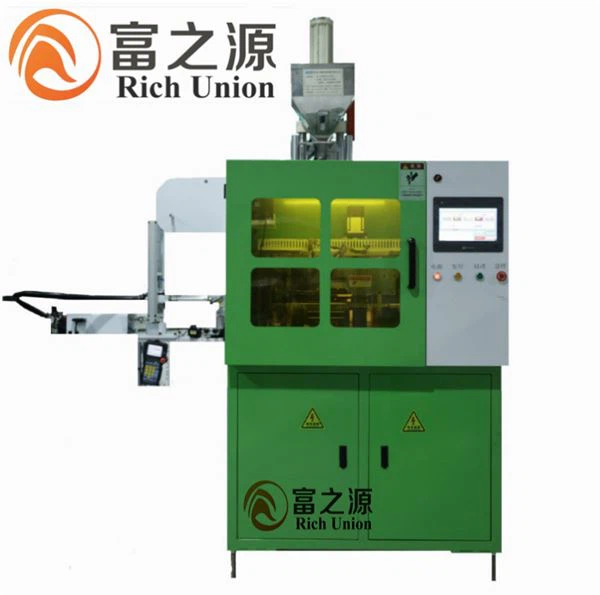

Finished Zipper Slider Making Machine Factory Assembly

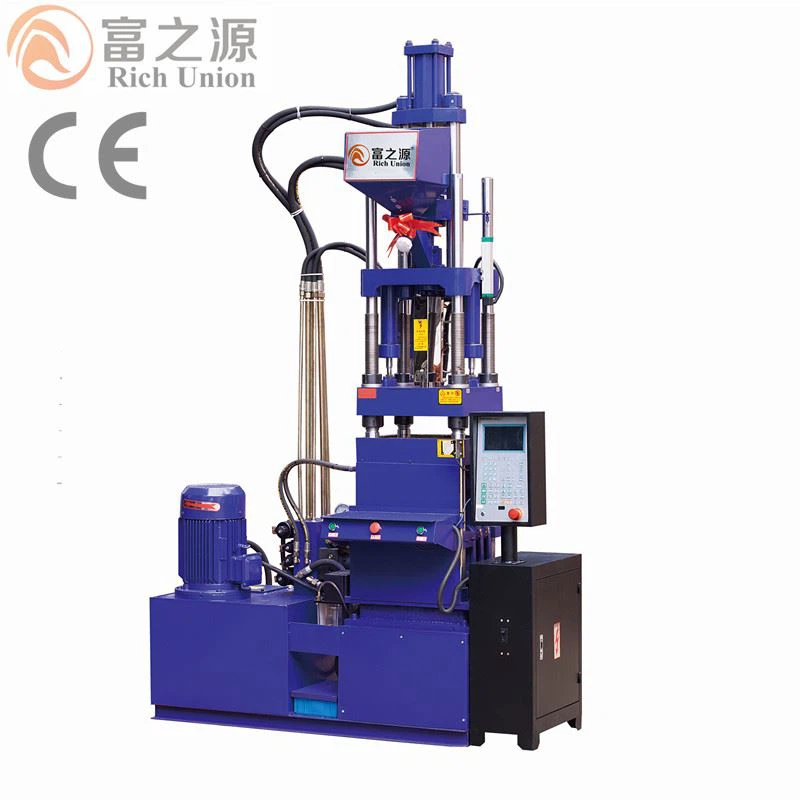

Injection molding machine
Injection molding machine parameters
| Vertical Semi Auto (63g) / Injection machine | Product | |||
| Screw Diameter | mm | 32 | ||
| Theoretical Injection Volume | cm3 | 120 | ||
| (PS)Injection Weight | g | 60 | ||
| Max.Injection Pressure | Kgf/cm2 | 90 | ||
| Injection Rate | cm3/ | 68 | ||
| Screw speed Rotation | r/min | 0-160 | ||
| Clamping Force | kn(tf) | 550 | ||
| Clamping Stroke | mm | 200 | ||
| (h*v)Distance Between Tie Bars | mm | 305*206 | ||
| (l*w)Max. Mould Size | mm | 450*340 | ||
| Min.Mold Thickness | mm | 100-300 | ||
| System Pressure | MPA.Kgf/cm2 | 14 | ||
| Eletrice Power ） | KW(HP) | 5.5 | ||
| heating power | KW(HP) | 3.2 | ||
| Machine Diamensions (l*w*) | m | 1.4*0.8 | ||
| Machine high | m | 2.5 | ||
| Machine Weight | T | 0.9 | ||
Automatic manipulator
Equipment use parameters
1. Power supply voltage 220v
2. Vertical double ratio injection molding machine 35-80TON, the opening and closing height of the upper and lower plates is more than 40CM
3. The equipment air pressure input must be greater than 0.5MPA to 0.6MPA
4. The length of the rope folded in half is 10CM, and the length of rope folded in half is 3CM
5. The minimum rope thickness is 1MM, the maximum rope thickness is 4.5MM.
6. The longest size of injection molded products is 4.2CM, and the shortest is 8MM
Equipment size: 230*115*180CM
Equipment weight: machine 205KG manipulator 35KG mold 45KG plastic cutting machine 15KG

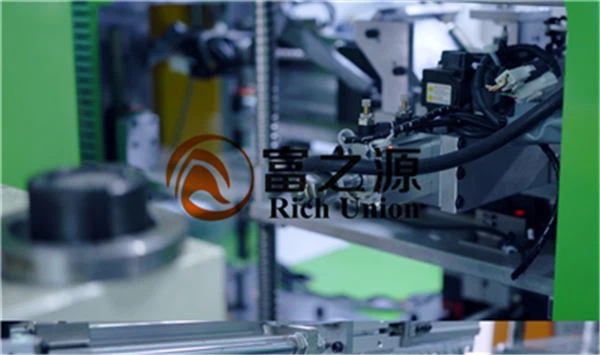

Main parts of equipment
Injection molding machine, guide rail, screw rod, slider, cylinder, sensor, PLC controller, display screen, mold base, motor

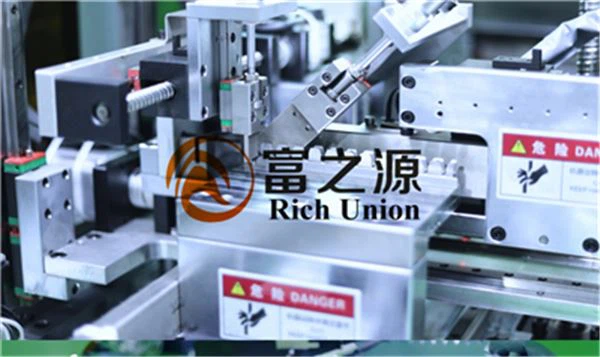

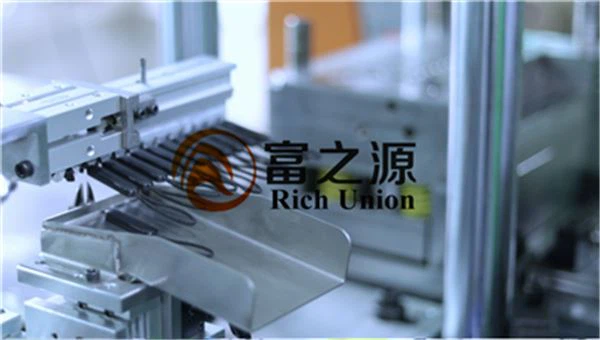

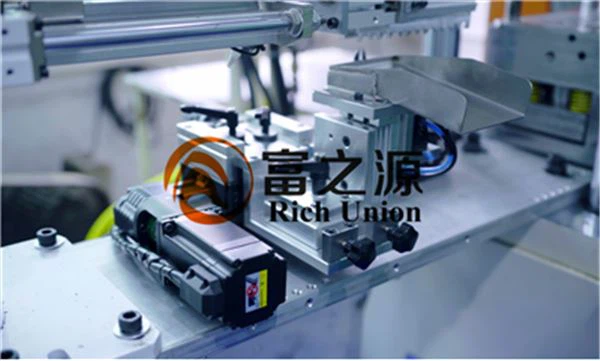

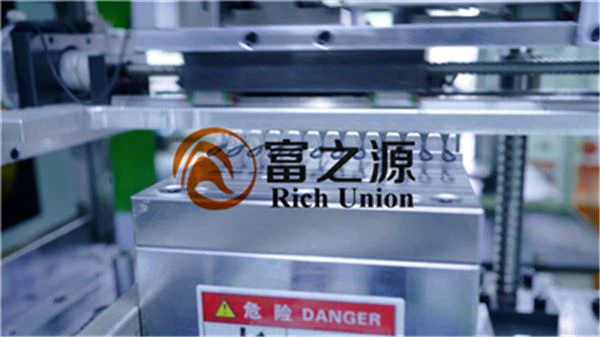

Equipment performance: This equipment is an automatic rope cutting, swing rope, in-mold injection, manipulator picking materials, automatic cutting plastics, and become an integrated automation equipment for finished products.
Equipment advantages:
1. Standardized cut rope, straighten the rope, there is no rope difference or missing rope phenomenon
2. The daily output is as high as 30,000-40000 (10H). Compared with traditional labor, the production capacity is doubled
3. One employee can operate 3-4 machines, reducing labor costs
4. Stable performance, product qualification rate as high as 98.5%
5. Compared with traditional labor, the production cost is low, and the product quality is guaranteed. Product competition has advantages
Advantages
We can provide one-stop purchase service,including the whole production line, auxiliary equipment, water Chiller, Air Compressor, yarns
We can provide technicial support lifetime ,sharing 20 years experience in making tags.
helping you to improve the production output and save cost and solve all problems in process.
